TFON Surfacer® TF-RBC 2565
TFON Surfacer® TF-RBC 2565 heavy slag removal and deburring and edge rounding machine is the machine used to clean the burrs formed after the flame cutting processes of metal parts, round the sharp edges and make the parts have a smooth surface.
| Features | Features |
|---|---|
| Material | Steel, Aluminum And Stainless |
| Process | Heavy Slag Removal, Deburring, Edge Rounding |
| Material Thickness (mm) | 0-120 |
| Max. Material Width (mm) | 650 |
| Min. Part Dimensions (mm) | 50x50 |
| Max Material Weight (kg) | 350 |
| Conveyor Speed (m/min) | 0,6-4,0 |
| Min. Deduster Need (m³/h) | 3500 |
| Machine Power - Power Consumption (kW) | 21 / 28,5 |
| Machine Weight (kg) | 2750 |
| Holder System | Magnetic (Vacuumm Optional) |
| Compressed Air Requirement | Minimum 5,0 Bar |
| Model | Flap Wheels Quantity | Flap Wheels Dimensions | Conveyor Width | Working Height | Conveyor Speed | Consumption | Processes |
|---|---|---|---|---|---|---|---|
| TF-RBC 2565 | 4 | Ø270x250mm | 650mm | 120mm | 0,6-4,0 m/min | 21 kW | Heavy Slag Removal, Deburring, Edge Rounding |

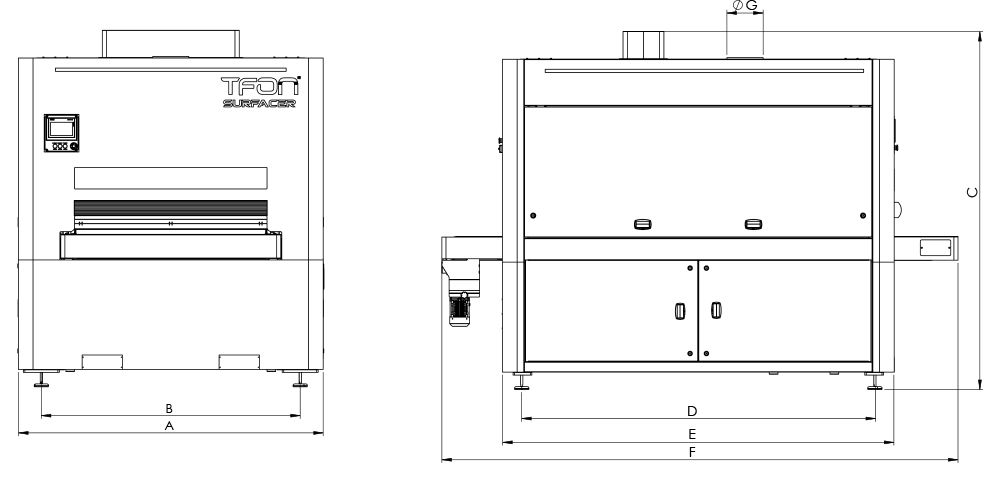

| Flap Emery Dimension (Diameter) | Flap Emery Dimension (Lenght) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| Ø270 | 250 | 1370 | 1100 | 2310 | 1945 | 2210 | 3050 | Ø200 |
