TFON Surfacer® TF-RBF 2510

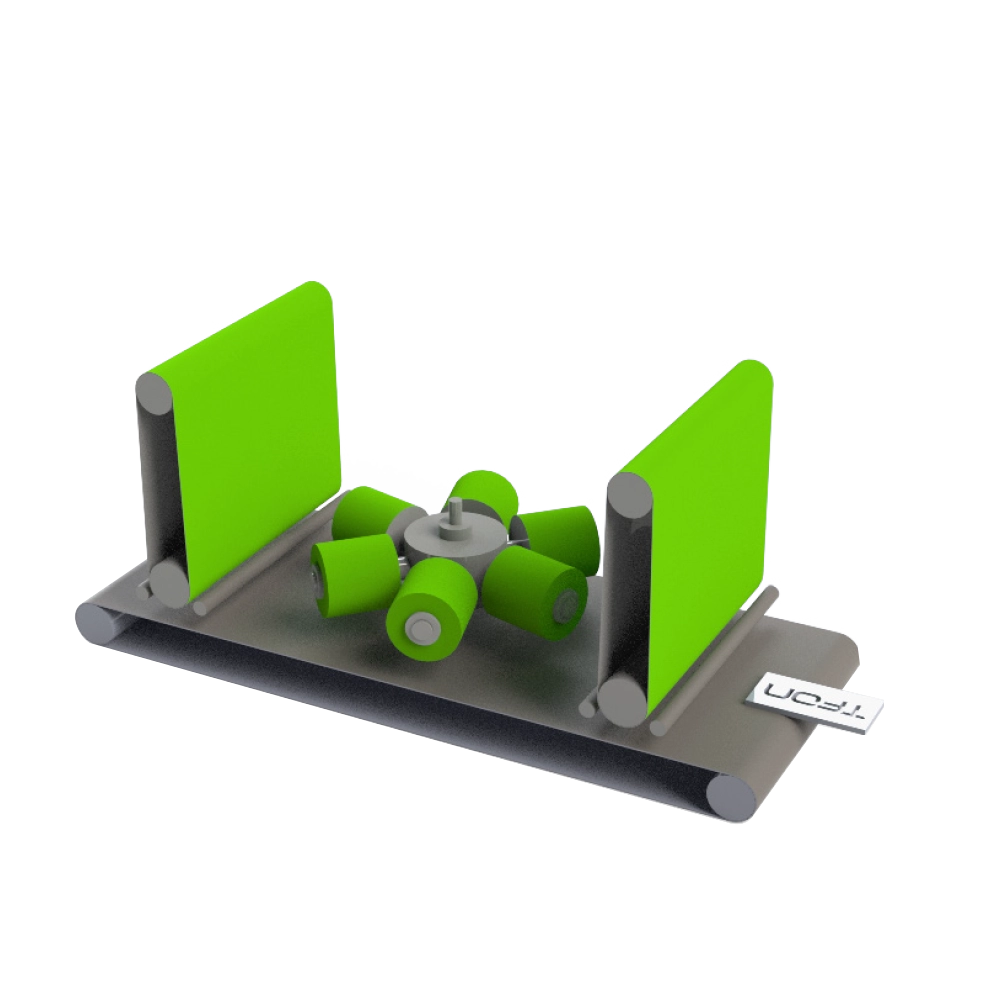

TFON Surfacer TF-RBF 2510 Deburring, Edge Rounding, Finishing Station is a machine for rounding the edges of metal plates. The sharp edges of the metal plates are rounded after processing, making it safer. This is important in terms of occupational safety in the post-processing phase. Finishing Station allows the material to gain an aesthetic appearance in the ending step of the cleaned product.
| Features | Features |
|---|---|
| Material | Steel, Aluminum And Stainless |
| Process | Deburring,Edge Rounding,Finishing |
| Material Thickness (mm) | 0-120 |
| Max. Material Width (mm) | 1000 |
| Min. Part Dimensions (mm) | 50x50 |
| Max. Material Weight (kg) | 500 |
| Conveyor Speed (m/min) | 0,6-4,0 |
| Min. Deduster Need (m³/h) | 7000 |
| Machine Power - Power Consumption (kw) | 51,2 |
| Machine Weight (kg) | 4500 |
| Holder System | Magnetic (Vacuum Optional) |
| Compressed Air Requirement | Min. 5,0 Bar |
| Model | Flap Wheels Quantity | Flap Wheels Dimensions | Conveyor Width | Working Height | Conveyor Speed | Consumption | Processes |
|---|---|---|---|---|---|---|---|
| TF-RBF 2510 | 6 | Ø270x250mm | 1000mm | 120mm | 0,5-4,0 m/min | 51,2 kW | Deburring, Edge Rounding, Finishing Station |

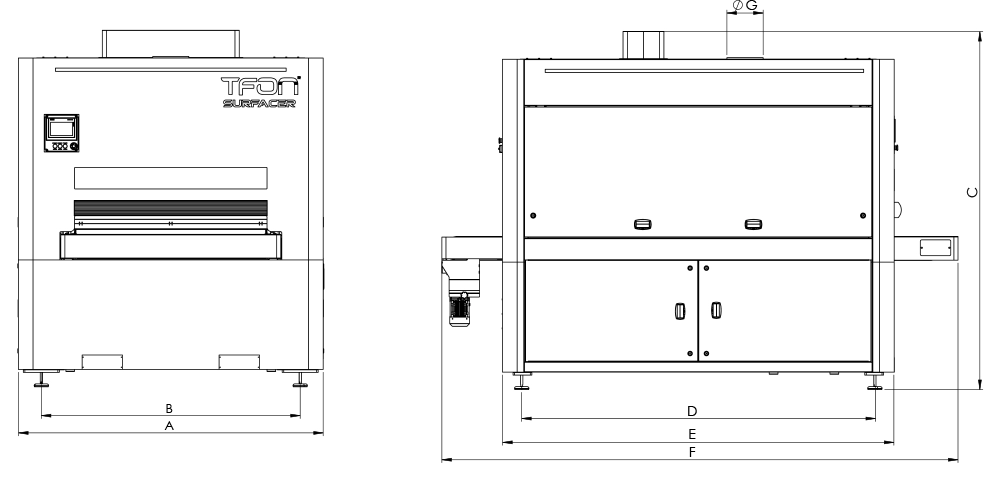

| Flap Emery Dimension (Diameter) | Flap Emery Dimension (Lenght) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| Ø270 | 250 | 1815 | 1500 | 2310 | 2165 | 2435 | 2955 | Ø200 |
