Tfon Leveltech® L-9011
Straightening and Stress Relief Machine Tfon Leveltech® L-9011 Tfon Leveltech® L-9011 Leveling Machine provides excellent results in relieving the internal stress of metal sheets in different structures from 1 mm to maximum 30 mm in thickness and in straightening the material.
| Features | Features |
|---|---|
| Process | Rectification And Residual Stress Relieve |

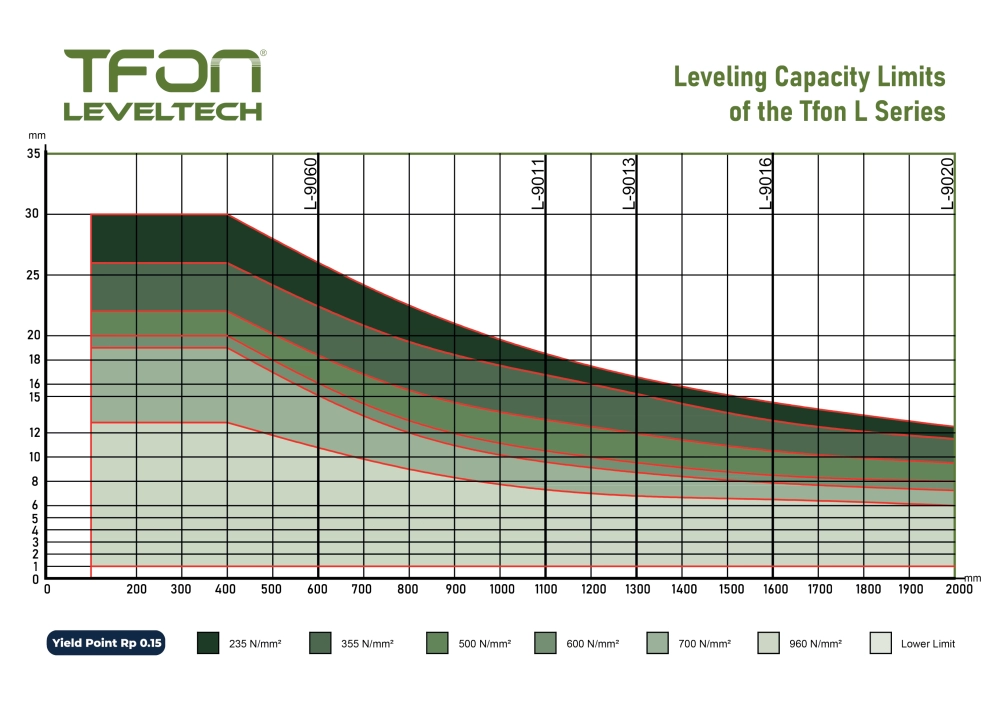

| Material Thickness (mm) | 1-30 |
| Maximum Material Width (mm) | 1100 |
| Minimum Material Length(mm) | 145 |
| Quick Change System for Straightening Rollers | Standard |
| Flattening Gap Adjustment | Servo Hydraulic/PC Control |
| Overload Protection | Standard |
| Screen | Touch |
| CE-Certificate | Standard |
| Machine Size (mm) | 4600x7185x2260 |
| Total Weight (kg) | 31000 |

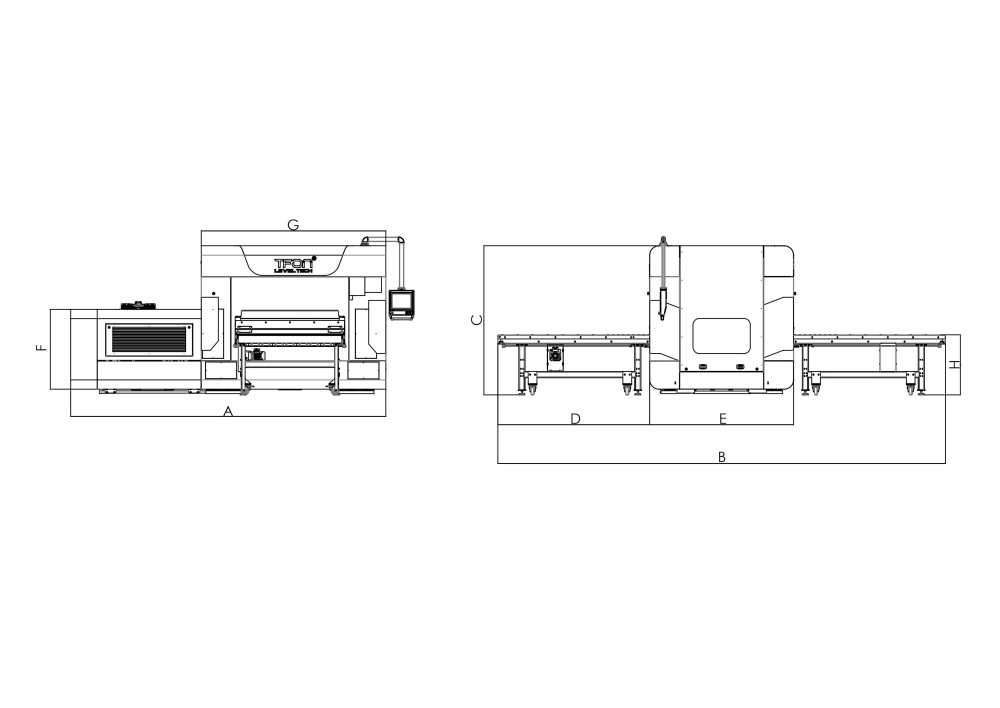

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| L-9011 | 4720 | 7200 | 2350 | 2425 | 2350 | 1460 | 2400 | 1000 |
