Tfon Leveltech® M-5560
Straightening and Stress Relief Machine Tfon Leveltech® M-5560 Tfon Leveltech® M-5560 Leveling Machine provides excellent results in relieving the internal stress of metal sheets in different structures from 1 mm to maximum 15 mm in thickness and in straightening the material.
| Features | Features |
|---|---|
| Process | Rectification And Residual Stress Relieve |
| Material Thickness (mm) | 1-15 |
| Maximum Material Width (mm) | 600 |
| Minimum Material Length(mm) | 110 |
| Quick Change System for Straightening Rollers | Standard |
| Flattening Gap Adjustment | Servo Hydraulic/PC Control |
| Overload Protection | Standard |
| Screen | Touch |
| CE-Certificate | Standard |
| Machine Size (mm) | 2850x2905x1950 |
| Total Weight (kg) | 14500 |

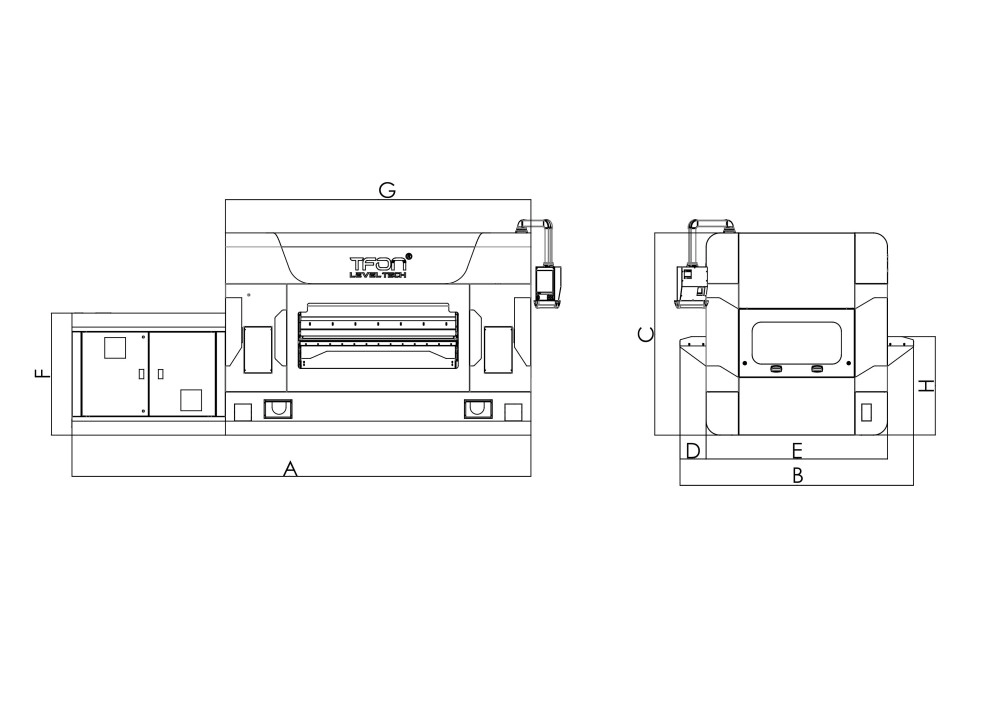

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| M-5560 | 3600 | 2330 | 2200 | 190 | 1950 | 1300 | 1600 | 1050 |
