Minimize the time losing in production with TFON!
TFON Leveltech® M-5511

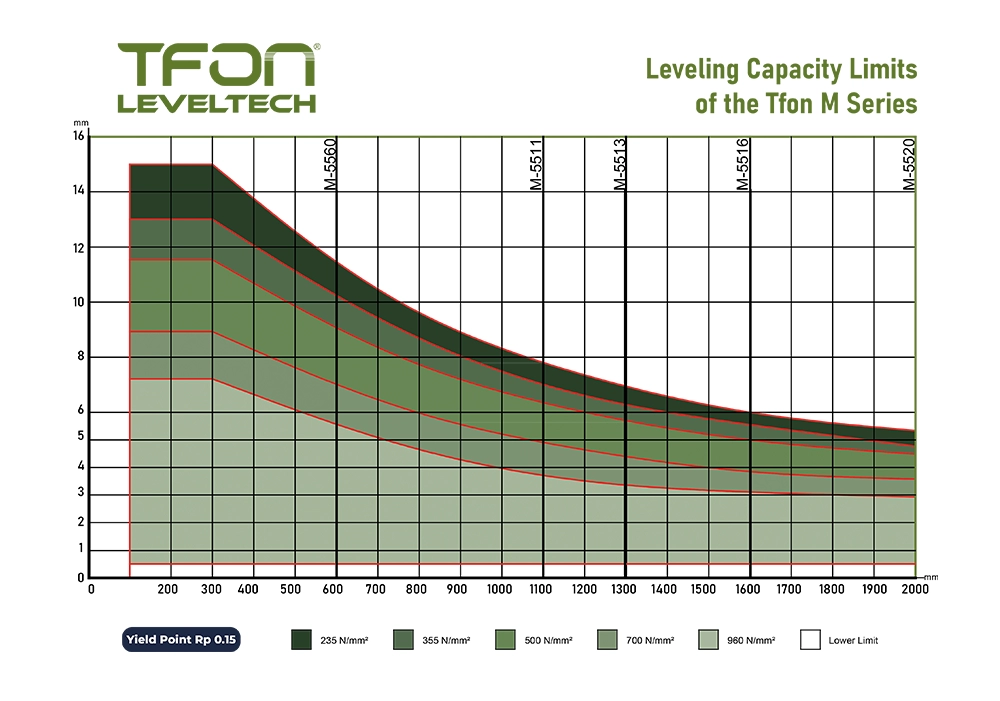

Straightening and Stress Relief Machine Tfon Leveltech® M-5511 Tfon Leveltech® M-5511 Leveling Machine provides excellent results in relieving the internal stress of metal sheets in different structures from 1 mm to maximum 15 mm in thickness and in straightening the material.
| Features | Features |
|---|---|
| Process | Leveling and Residual Relieve |
| Material Thickness (mm) | 1-15 |
| Maximum Material Width (mm) | 1100 |
| Minimum Material Lenght (mm) | 110 |
| Quick Change System for Straightening Rollers | Standard |
| Flattening Gap Adjustment | Servo Hydraulic/PC Control |
| Overload Protection | Standard |
| Screen | Touch |
| CE-Certificate | Standard |
| Machine Size (mm) (Lenght x Width x Height) | 3350x2905x1950 |
| Total Weight (kg) | 17250 |

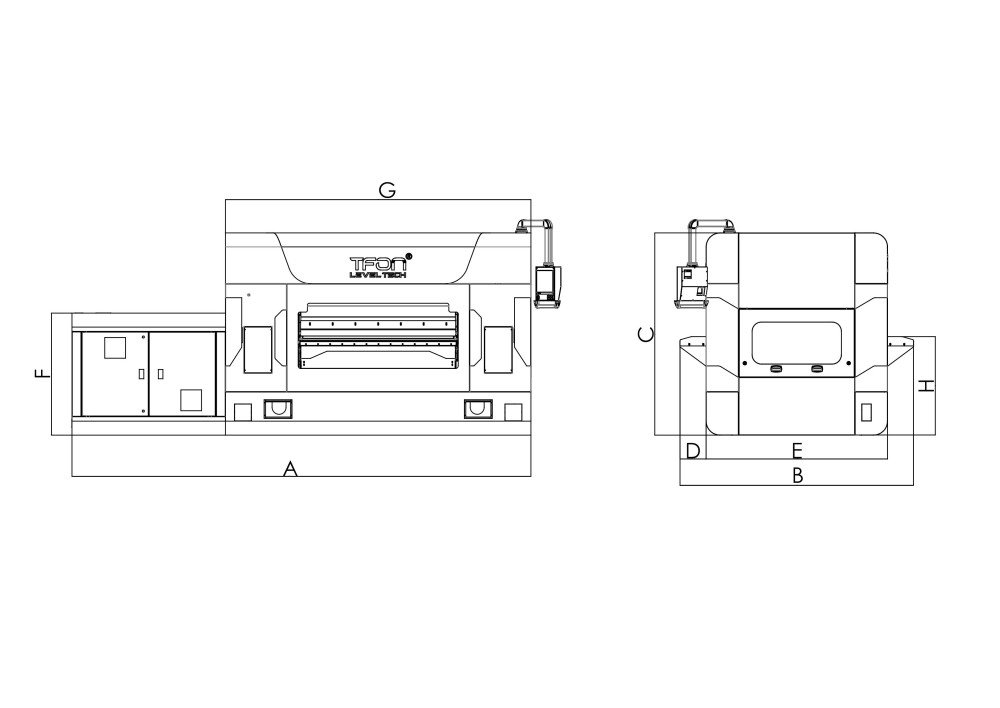

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| M-5511 | 4100 | 2330 | 2200 | 190 | 1950 | 1300 | 2100 | 1050 |
