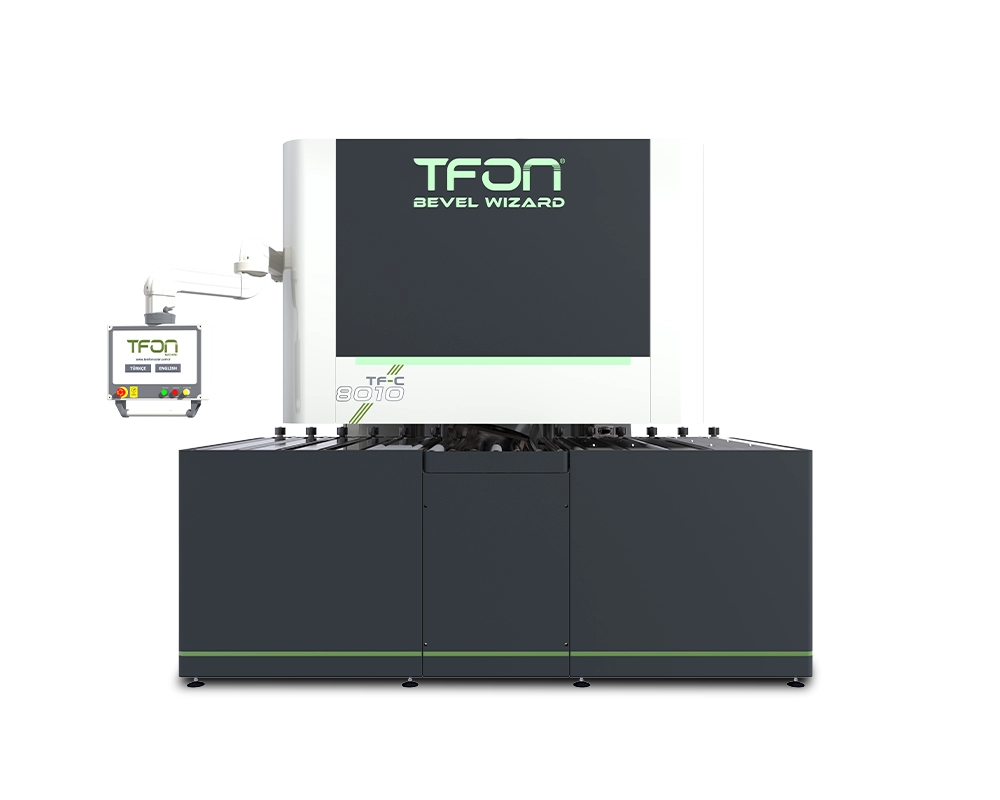

TFON Bevel Wizard® TF-C 8010 Beveling Machine
TFON Bevel Wizard® Linear - Non Linear Beveling Machine is a machine that can meet the needs of beveling linear and non-linear edges, taking into account the thickness and geometry of the sheets. Thanks to the Trace Tracking System, it reads different geometric shapes on the part and enables the part to be processed.
| Features | Features |
|---|---|
| Material Processing Angle | (-30) - (+80) |
| Minimum Material Width (mm) | 250 |
| Material Thickness (mm) | 4-100 |
| Minimum Material Length (mm) | 250 |
| Maksimum Material Length (mm) | 12000 |
| Part Feed Speer (m/min) | 1,5 / 5 |
| Machine Weight (kg) | 10000 |
| Features | Features |
|---|---|
| Part Indentation (mm) | Ø400 |
| Emery Band Rotation Speed (m/min) | 30 |
| Contact Wheel Diameter (mm) | Ø135 |
| Part Compection Speed (m/dak) | 3 |
| Emery Band Drum Diameter (mm) | Ø400 |

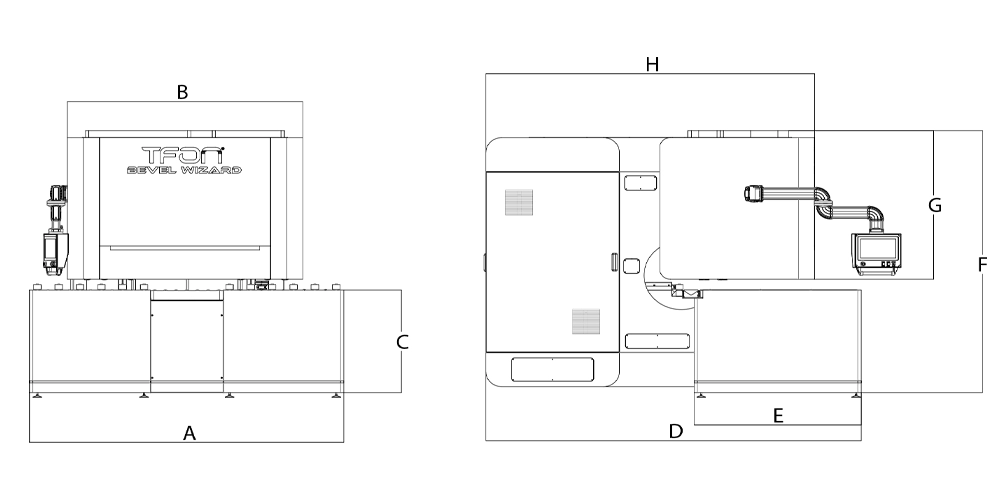

| Technical Dimensions (mm) | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 2945 | 2200 | 1050 | 3515 | 1565 | 2685 | 1525 | 3080 |
