Tfon Leveltech® S-3511
Straightening and Stress Relief Machine Tfon Leveltech® S-3511 Tfon Leveltech® S-3511 Leveling Machine provides excellent results in relieving the internal stress of metal sheets in different structures from 0,3 mm to maximum 5 mm in thickness and in straightening the material.
| Features | Features |
|---|---|
| Process | Rectification And Residual Stress Relieve |
| Material Thickness (mm) | 0,3-5 |
| Maximum Material Width (mm) | 1100 |
| Minimum Material Length(mm) | 70 |
| Quick Change System for Straightening Rollers | - |
| Flattening Gap Adjustment | Electromechanics/PC Control |
| Overload Protection | Standard |
| Screen | Touch |
| CE-Certificate | Standard |
| Machine Size (mm) | 2485x1585x1820 |
| Total Weight (kg) | 5300 |

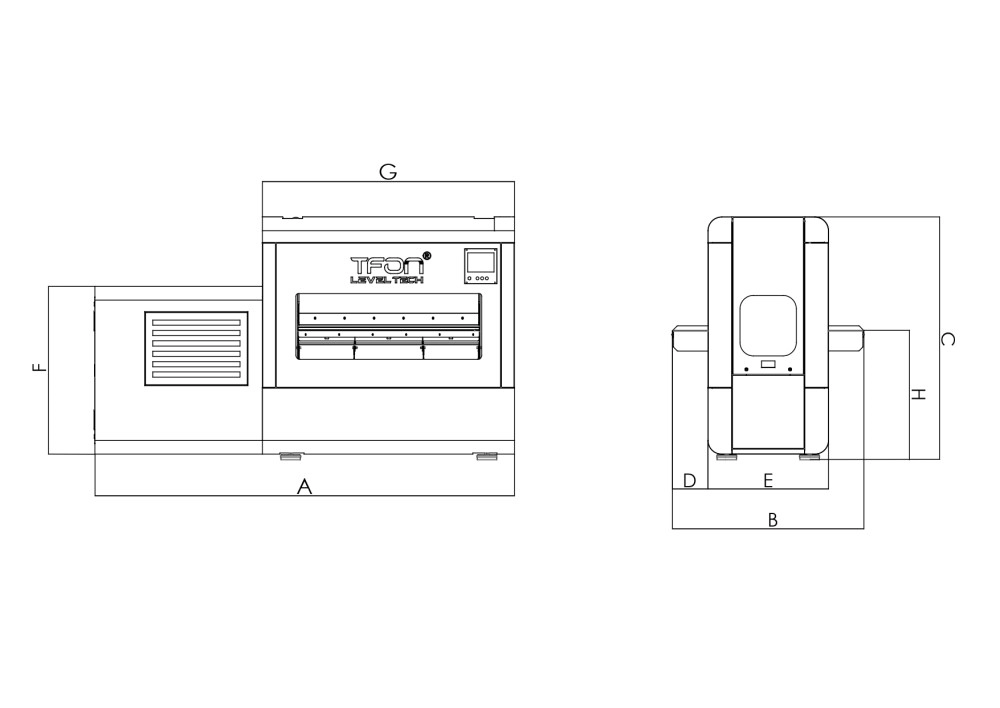

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| S-3511 | 2610 | 1400 | 2230 | 250 | 990 | 1330 | 1680 | 965 |
