Minimize the time losing in production with TFON!
Tfon Leveltech® S-3513
Straightening and Stress Relief Machine Tfon Leveltech® S-3513 Tfon Leveltech® S-3513 Leveling Machine provides excellent results in relieving the internal stress of metal sheets in different structures from 0,3 mm to maximum 5 mm in thickness and in straightening the material.
| Process | Rectification And Residual Stress Relieve |
|---|---|
| Material Thickness (mm) | 0,3-5 |
| Maximum Material Width (mm) | 1300 |
| Minimum Material Length(mm) | 70 |
| Quick Change System for Straightening Rollers | Optional |
| Flattening Gap Adjustment | Electromechanics/PC Control |
| Overload Protection | Standard |
| Screen | Touch |
| CE-Certificate | Standard |
| Machine Size (mm) | 2685x1585x1820 |
| Total Weight (kg) | 6000 |

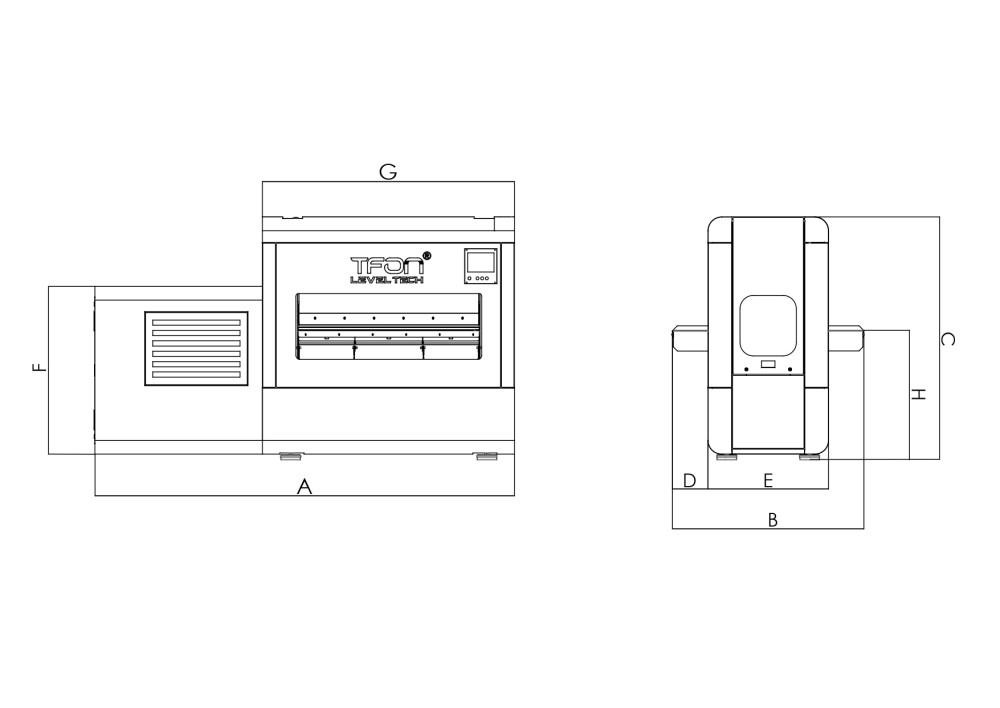

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| S-3513 | 2810 | 1400 | 2230 | 250 | 990 | 1330 | 1880 | 965 |
