Tfon Surfacer® TF-RBCF 3013 Plus

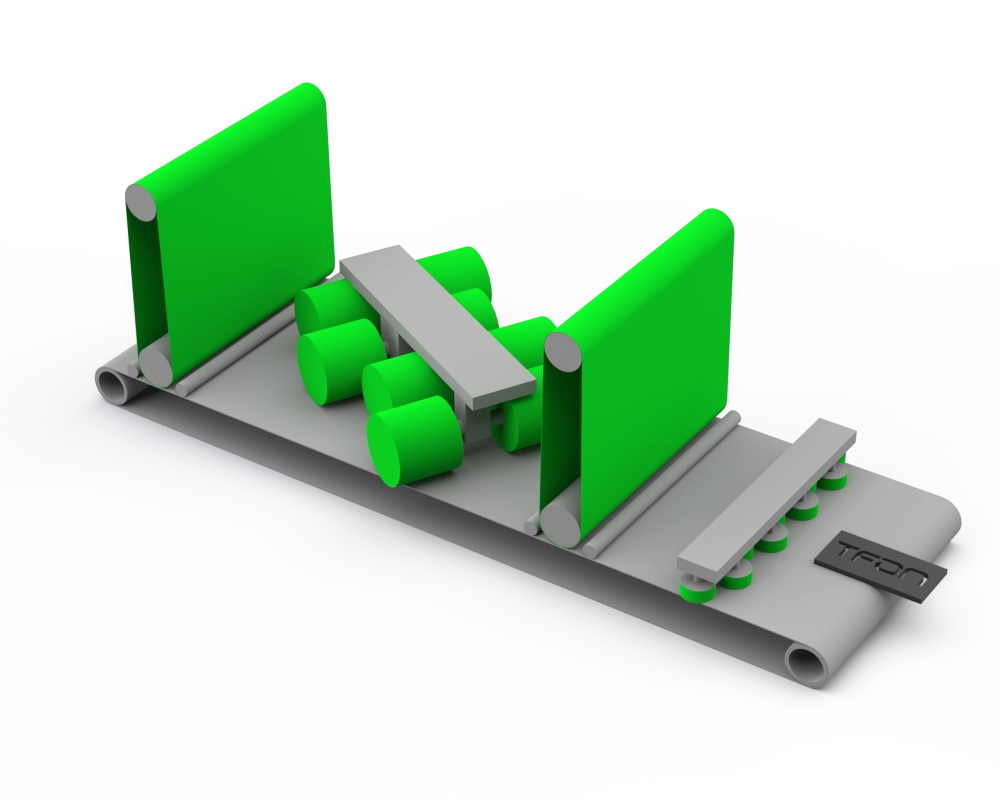

Tfon Surfacer® TF-RBCF 3013 Plus deburring and edge rounding machine is the machine used to remove the burrs formed after the flame cutting processes of metal parts, round the sharp edges and make the parts have a smooth surface.
| Features | Features |
|---|---|
| Material | Steel, Aluminum And Stainless |
| Process | Heavy Slag Removal, Deburring, Edge Rounding, Satine |
| Material Thickness (mm) | 0-120 |
| Max. Material Width (mm) | 1300 |
| Min. Part Dimensions (mm) | 50x50 |
| Max Material Weight (kg) | 600 |
| Conveyor Speed (m/min) | 0,6-4,0 |
| Min. Deduster Need (m³/h) | 10000 |
| Machine Power - Power Consumption (kW) | 59,7/81,7 |
| Machine Weight (kg) | 6200 |
| Holder System | Magnetic (Vacuum Optional) |
| Compressed Air Requirement | Minimum 5,0 Bar |
| Model | Flap Wheels Quantity | Flap Wheels Dimensions | Conveyor Width | Working Height | Conveyor Speed | Consumption | Processes |
|---|---|---|---|---|---|---|---|
| TF-RBCF 3013 Plus | 8 | Ø350X490mm | 1300mm | 120mm | 0,6-4,0 m/min | 59,7 kW | Heavy Slag Removal, Deburring, Edge Rounding, Satine |

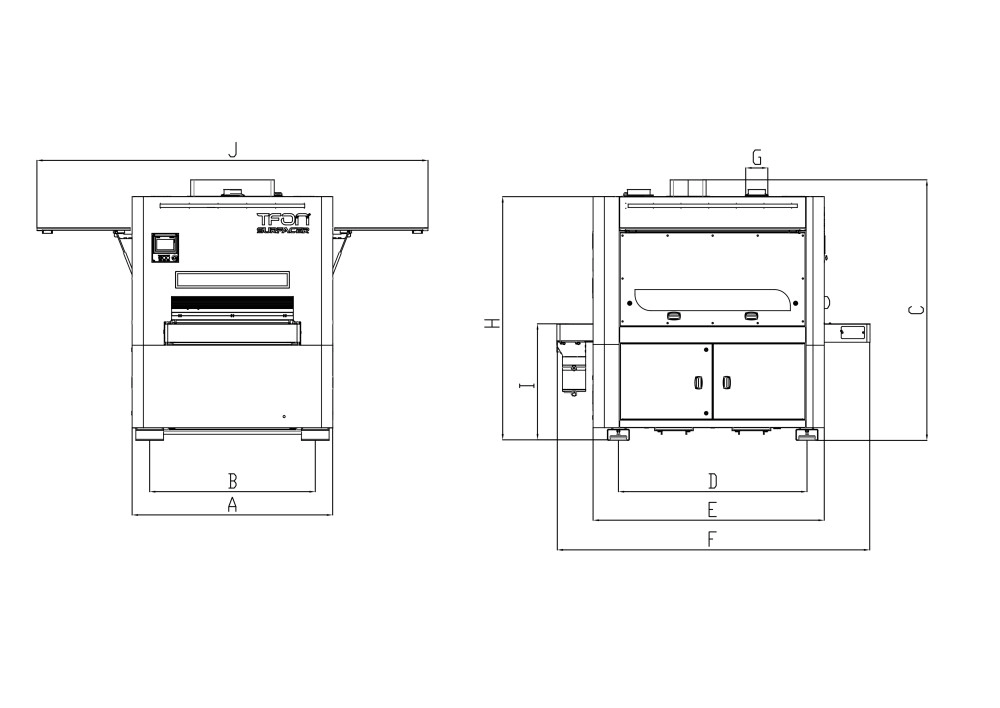

| Flap Wheels Dimension (Diameter) | Flap Wheels Dimension (Lenght) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| Ø350 | 490 | 2115 | 1800 | 2650 | 3900 | 4240 | 5075 | Ø200 |
