Tfon Surfacer® TF-RBF 3013 Plus
Tfon Surfacer® TF-RBF 3013 Plus
| Features | Features |
|---|---|
| Material | Steel, Aluminum And Stainless |
| Process | Deburring, Edge Rounding,Satine |
| Material Thickness (mm) | 0-120 |
| Max. Material Width (mm) | 1300 |
| Min. Part Dimensions (mm) | 50x50 |
| Max Material Weight (kg) | 600 |
| Conveyor Speed (m/min) | 0,6-4,0 |
| Min. Deduster Need (m³/h) | 9000 |
| Machine Power - Power Consumption (kW) | 69,7 |
| Machine Weight (kg) | 5200 |
| Holder System | Magnetic (Vacuum Optional) |
| Compressed Air Requirement | Minimum 5,0 Bar |
| Model | Flap Wheels Quantity | Flap Wheels Dimensions | Conveyor Width | Working Height | Conveyor Speed | Consumption | Processes |
|---|---|---|---|---|---|---|---|
| TF-RBF 3013 Plus | 8 | Ø350X490mm | 1300mm | 120mm | 0,6-4,0 m/min | 69,7 kW | Deburring, Edge Rounding,Satine |

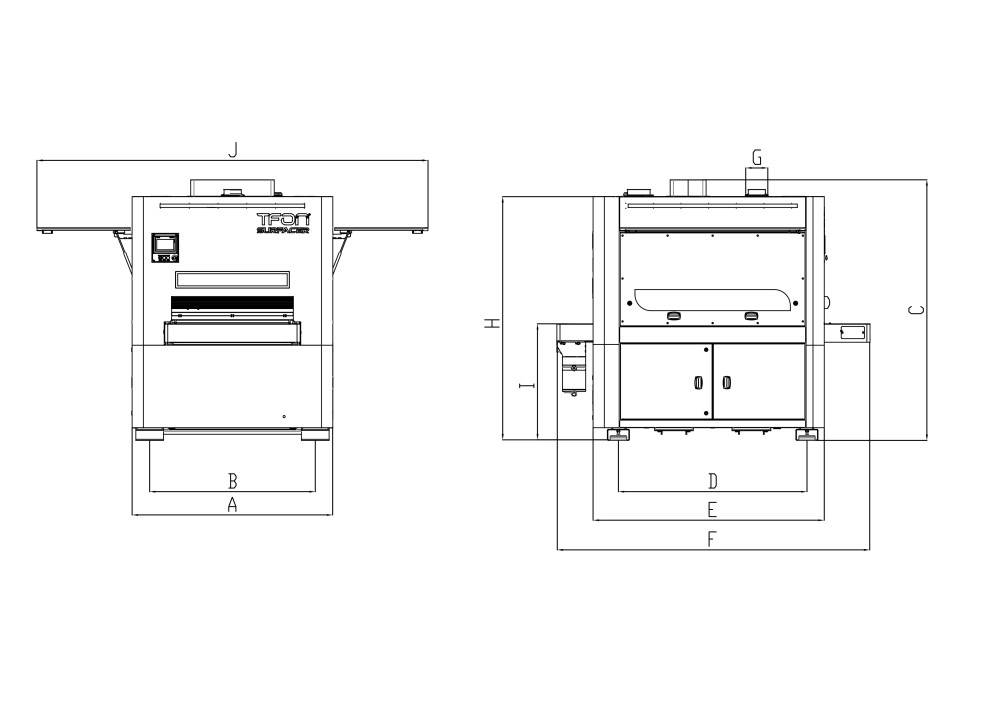

| Flap Wheels Dimension (Diameter) | Flap Wheels Dimension (Lenght) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| Ø350 | 490 | 2115 | 1800 | 2650 | 3100 | 3450 | 4125 | Ø200 |
