Tfon Surfacer® TF-RF 2565

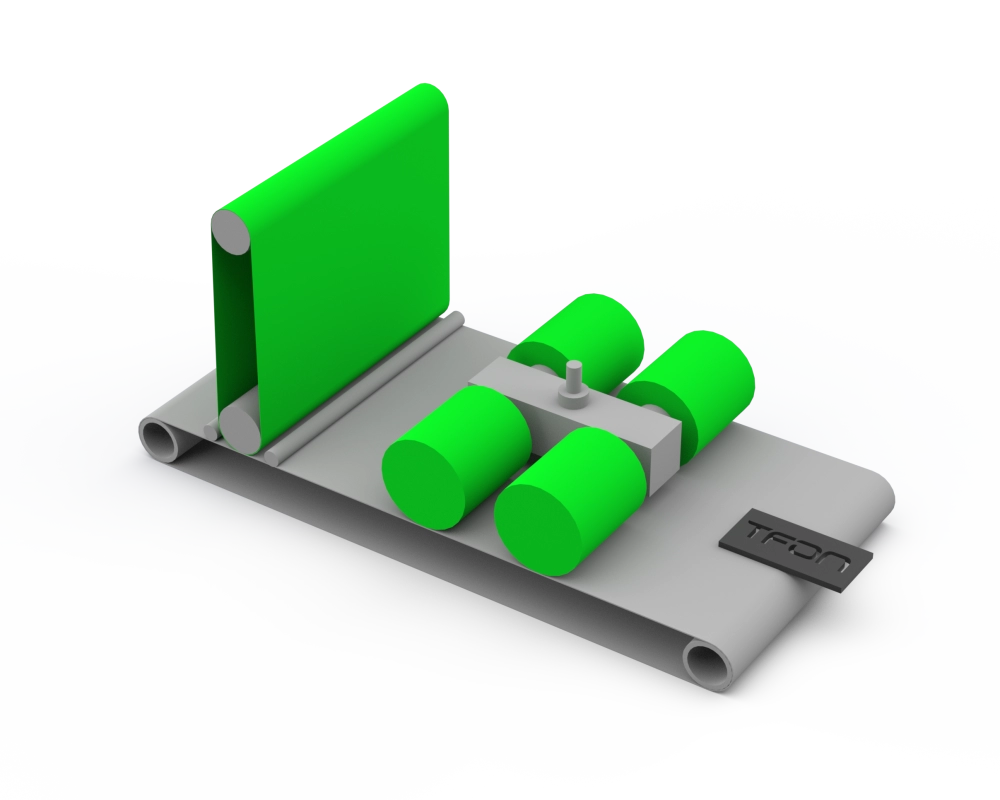

Tfon Surfacer® TF-RF 2565 Edge Rounder is a machine for rounding the edges of metal plates. The sharp edges of the metal plates are rounded after processing, making it safer. This is important in terms of occupational safety in the post-processing phase.
| Features | Features |
|---|---|
| Material | Steel, Aluminum And Stainless |
| Process | Deburring,Edge Rounding |
| Material Thickness (mm) | 0-120 |
| Max. Material Width (mm) | 650 |
| Min. Part Dimensions (mm) | 50x50 |
| Max. Material Weight (kg) | 350 |
| Conveyor Speed (m/min) | 0,6-4,0 |
| Min. Deduster Need (m³/h) | 3000 |
| Machine Power - Power Consumption (kw) | 22,8 |
| Machine Weight (kg) | 2500 |
| Holder System | Magnetic (Vacuum Optional) |
| Compressed Air Requirement | Minimum 5,0 Bar |
| Model | Flap Wheels Quantity | Flap Wheels Dimensions | Conveyor Width | Working Height | Conveyor Speed | Consumption | Processes |
|---|---|---|---|---|---|---|---|
| TF-RF 2565 | 4 | Ø270x250mm | 650mm | 120mm | 0,6-4,0 m/min | 24,2 kW | Çapak Alma, Kenar Yuvarlama |

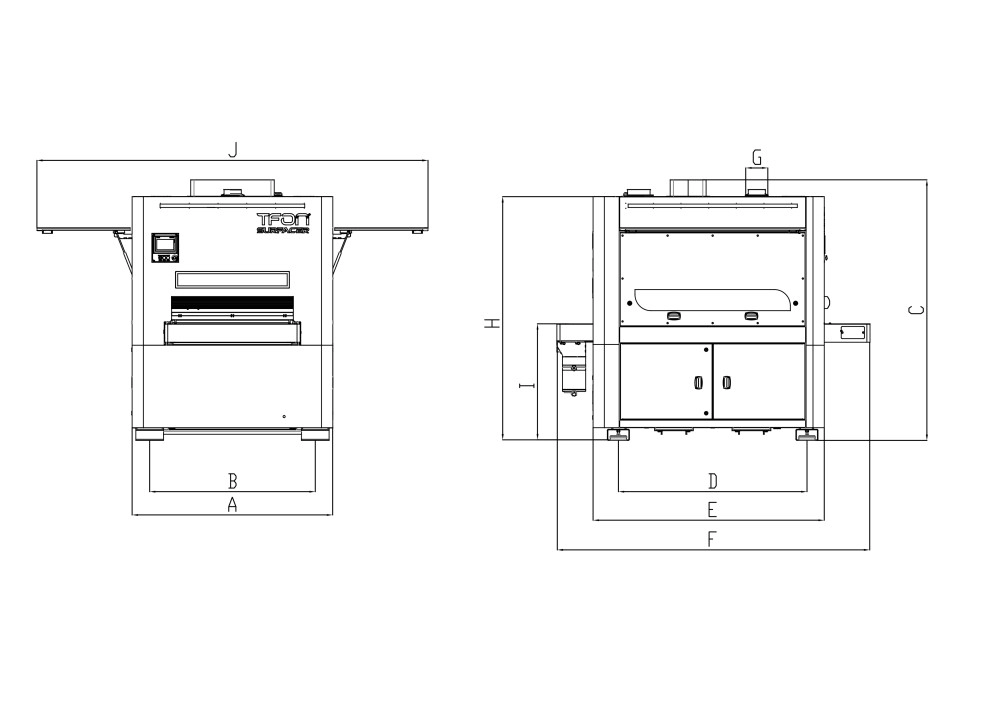

| Flap Emery Dimension (Diameter) | Flap Emery Dimension (Lenght) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| Ø270 | 250 | 1370 | 1100 | 2310 | 1545 | 1820 | 2840 | Ø200 |
