Minimize the time losing in production with TFON!
Tfon Surfacer® TF-RF 2565 Plus
Tfon Surfacer® TF-RF 2565 Plus
| Features | Features | |
|---|---|---|
| Material | Steel, Aluminum And Stainless | |
| Process | Deburring, Edge Rounding | |
| Material Thickness (mm) | 0-120 | |
| Max. Material Width (mm) | 650 | |
| Min. Part Dimensions (mm) | 50x50 | |
| Max Material Weight (kg) | 350 | |
| Conveyor Speed (m/min) | 0,6-4,0 | |
| Min. Deduster Need (m³/h) | 3000 | |
| Machine Power - Power Consumption (kW) | 20,8 | |
| Machine Weight (kg) | 2350 | |
| Holder System | Magnetic (Vacuum Optional) | |
| Compressed Air Requirement | Minimum 5,0 Bar |
| Model | Flap Wheels Quantity | Flap Wheels Dimensions | Conveyor Width | Working Height | Conveyor Speed | Consumption | Processes |
|---|---|---|---|---|---|---|---|
| TF-RF 2565 | 4 | Ø270x250mm | 650mm | 120mm | 0,6-4,0 m/min | 20,8 kW | Deburring, Edge Rounding |

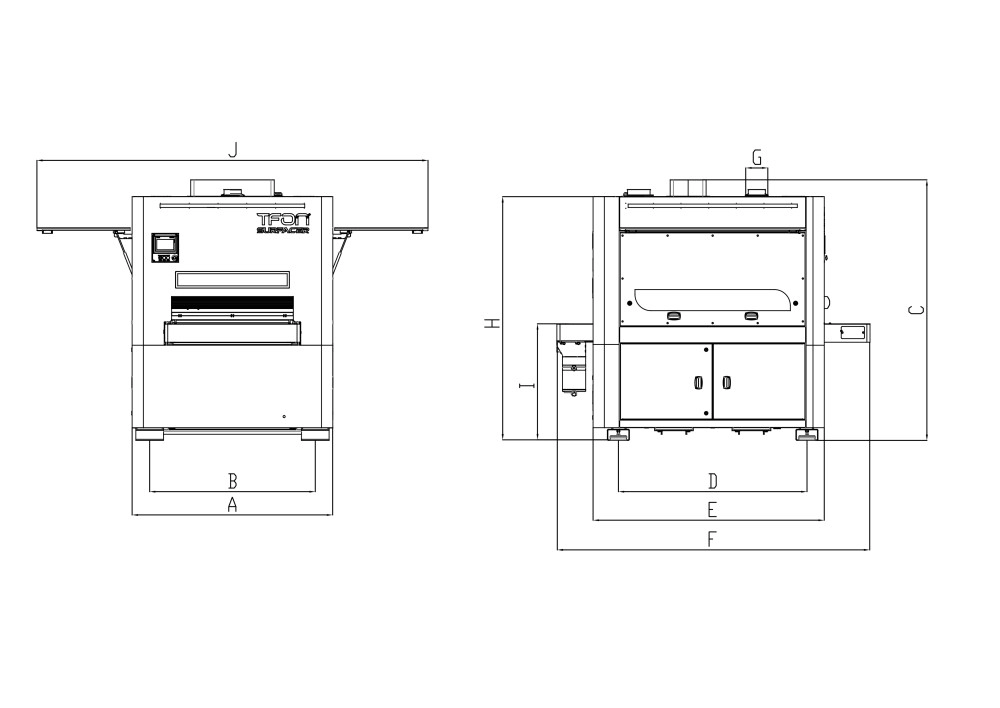

| Flap Wheels Dimension (Diameter) | Flap Wheels Dimension (Lenght) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| Ø270 | 250 | 1370 | 1100 | 2650 | 1545 | 1820 | 2840 | Ø200 |
