Minimize the time losing in production with TFON!
Tfon Surfacer® TF-RRBC 2565 Plus
Tfon Surfacer® TF-RRBC 2565 Plus
| Features | Features |
|---|---|
| Material | Steel, Aluminum And Stainless |
| Process | Heavy Slag Removal, Deburring, Edge Rounding, Oxide Removal |
| Material Thickness (mm) | 0-120 |
| Max. Material Width (mm) | 650 |
| Min. Part Dimensions (mm) | 50x50 |
| Max Material Weight (kg) | 350 |
| Conveyor Speed (m/min) | 0,6-4,0 |
| Min. Deduster Need (m³/h) | 5500 |
| Machine Power - Power Consumption (kW) | 28/39 |
| Machine Weight (kg) | 3950 |
| Holder System | Magnetic (Vacuum Optional) |
| Compressed Air Requirement | Minimum 5,0 Bar |
| Model | Flap Wheels Quantity | Flap Wheels Dimensions | Conveyor Width | Working Height | Conveyor Speed | Consumption | Processes |
|---|---|---|---|---|---|---|---|
| TF-RRBC 2565 Plus | 4 | Ø270x250mm | 650mm | 120mm | 0,6-4,0 m/min | 28 kW | Heavy Slag Removal, Deburring, Edge Rounding, Oxide Removal |

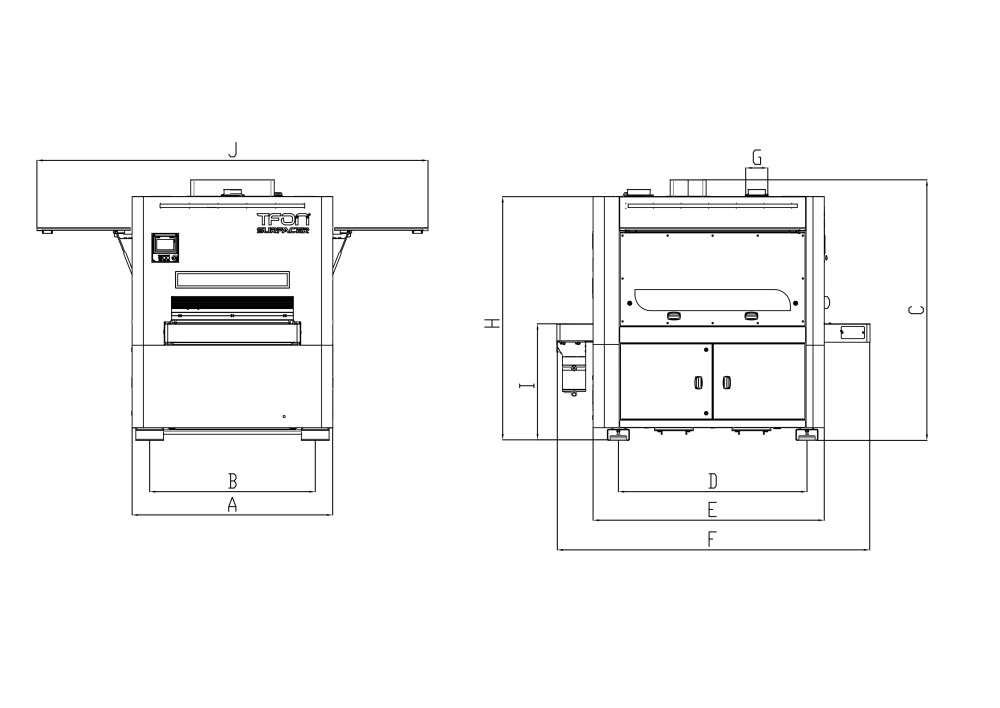

| Flap Wheels Dimension (Diameter) | Flap Wheels Dimension (Lenght) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| Ø270 | 250 | 1370 | 1100 | 2650 | 3030 | 3400 | 4450 | Ø200 |
