Material Thickness (mm)
0,5-15
TFON Leveltech® TF-M 5516
The TF-M 5516 is a 1600 mm leveling machine for laser-cut and punched parts from 0.5 to 15 mm thick; it corrects cutting and heat distortion by roller leveling. The job of the TFON Leveltech® TF-M 5516 is to remove, by roller leveling, the distortion that cutting and heat input leave in sheet and cut parts. Its working range is defined by a 0.5 to 15 mm thickness and a 1600 mm width. With a servo-hydraulic, PC-controlled leveling gap and a 110 mm minimum part length, it suits production that levels laser-cut and punched parts of different thicknesses within the same shift.
Minimum Material Length (mm)
110
Quick Changeover for Cylinders
Optional
Leveling Gap Adjustment
Servo Hydraulic / PC Control
Screen
Touch Screen
Maximum Material Width (mm)
1600

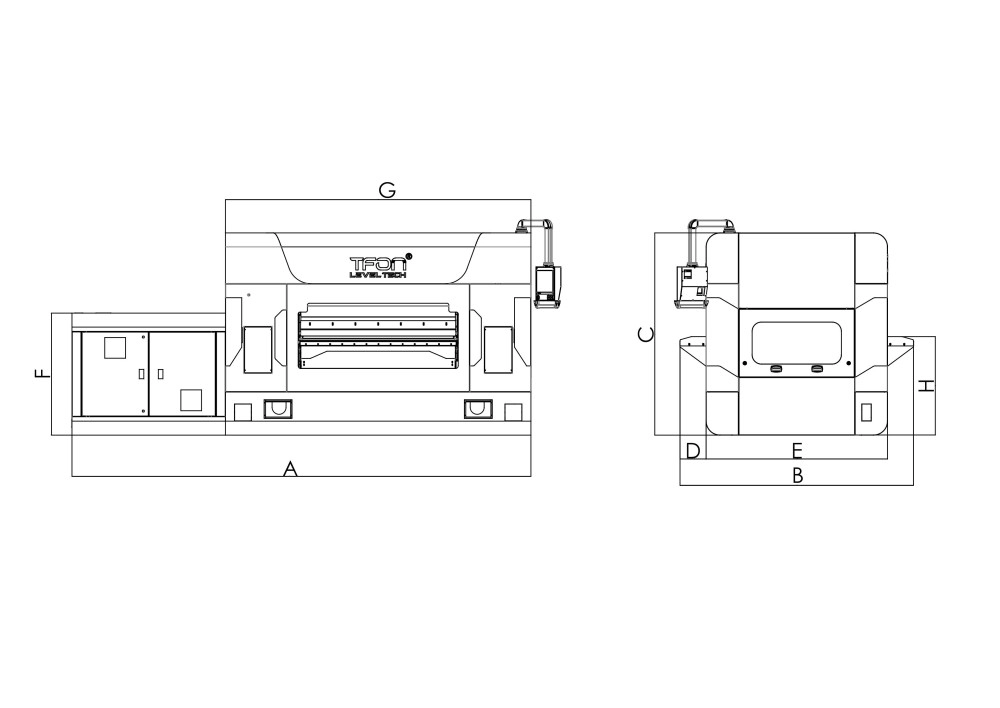

Machine Size (WxLxH)
2450x2250x4600
Total Weight (kg)
19000
Request a quote
Close
Request a quote
Fill in the details below and our team will get back to you.
Positioning Via 4 Linear Guides
PC Control
Servo-Hydraulic System
Overload Protection
Leveling Gap Control
Recipe System
IV-POINT
Our machine uses four independent pistons to manage the leveling gap, allowing for precise sheet processing with a tight tolerance of just 0.1mm.
T-VISION
Serving as the brain of the machine, our PC-controlled touch screen provides a complete overview of the entire leveling process. It tracks every critical detail in real-time, giving operators full control and instant visibility into the machine's performance at a single glance.
PRECIPRESS
In large machines, servo-hydraulic systems eliminate wear and backlash issues found in mechanical drives, delivering superior performance. They provide instant response and strong precise control even under high and large loads, ensuring efficiency and durability beyond traditional systems.
T-GUARD
This feature works by constantly monitoring the roller drive motor torque and hydraulic pressure sensors in real time. If the system detects a mismatch usually caused by a thickness input error it instantly intervenes to prevent an overload, ensuring the machine stays in peak condition for years.
GAPSNAP
The machine is equipped with a high-performance servo-hydraulic system that actively manages the leveling gap with extreme precision. It ensures the gap remains perfectly constant as the material passes through the rollers, resisting any deflection to deliver uniform flatness across every part.
PARTTRACK
The integrated recipe system allows operators to save and load specific processing parameters for every part, ensuring consistent quality across different batches. By automating these settings, the system eliminates manual input errors and prevents potential machine damage caused by incorrect operator adjustments.

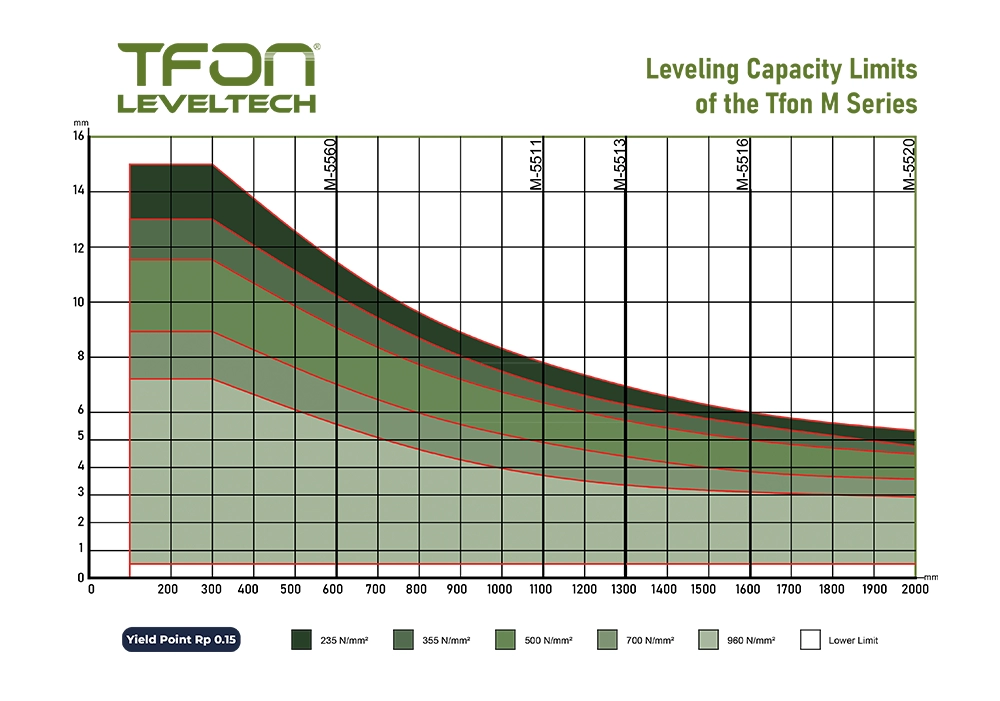

Leveling Capacity Limits
TFON M Series
Before/After
Before/After
After
Before
After
Before
After
Before
Which job does this machine solve?
- Corrects distortion from cutting and heat input in sheet and cut parts from 0.5 to 15 mm thick by mechanical roller leveling.
- 1600 mm working width: sheet and cut parts up to 1600 mm wide are leveled.
- The leveling gap is set servo-hydraulically and controlled via PC.
- 110 mm minimum part length: short cut parts can be leveled as well.
- Mechanical leveling is kept separate from thermal stress-relief heat treatment; if your drawing specifies a heat treatment, it is planned as a separate process.
Frequently asked questions
Does this machine perform thermal stress relief?
No. It performs mechanical roller leveling. A good flatness result does not certify that the material is stress-free.
What thickness and width does the TFON Leveltech® TF-M 5516 handle?
The TFON Leveltech® TF-M 5516 handles material from 0.5 to 15 mm thick and up to 1600 mm wide. The minimum material length is 110 mm; leveling gap control is servo-hydraulic with PC control.
Can parts with holes and cut-outs be leveled?
Yes, but parts with large cut-outs behave differently from a solid part of the same nominal thickness. A sample test is recommended.
How is the flatness result measured?
The measuring condition (free or supported), the measuring area, the instrument and the drawing limit are recorded together in writing.
How It Compares With Sibling Models
| Model | Working width (mm) | Thickness (mm) | Leveling gap control |
|---|---|---|---|
| TF-M 5560: 600 mm leveling machine | 600 | 0,5-15 | Servo Hydraulic / PC Control |
| TF-M 5511: 1100 mm leveling machine | 1100 | 0,5-15 | Servo Hydraulic / PC Control |
| TF-M 5513: 1300 mm leveling machine | 1300 | 0,5-15 | Servo Hydraulic / PC Control |
| TF-M 5516 (this page) | 1600 | 0,5-15 | Servo Hydraulic / PC Control |
| TF-M 5520: 2000 mm leveling machine | 2000 | 0,5-15 | Servo Hydraulic / PC Control |
| TF-L 9011: 1100 mm sheet metal leveler | 1100 | 1-30 | Servo Hydraulic / PC Control |
| TF-L 9013: 1300 mm sheet metal leveler | 1300 | 1-30 | Servo Hydraulic / PC Control |
