Material Thickness (mm)
0,3-5
TFON Leveltech® XS-3520
The XS-3520 is a 200 mm compact leveling machine for small laser-cut and punched parts from 0.3 to 5 mm thick; it corrects distortion by roller leveling. Small, thin parts do not need a large line to be leveled. The TFON Leveltech® XS-3520 levels thin sheet and cut parts from 0.3 to 5 mm thick, from a minimum part length of 35 mm, by mechanical roller leveling. The leveling gap is servo-mechanically controlled and the machine weighs 1,700 kg in total. This compact machine suits production that works with small laser-cut and punched parts and has limited floor space.
Minimum Material Length (mm)
35
Quick Changeover for Cylinders
Optional
Leveling Gap Adjustment
Servo Mechanic Control
Screen
Touch Screen
Maximum Material Width (mm)
200

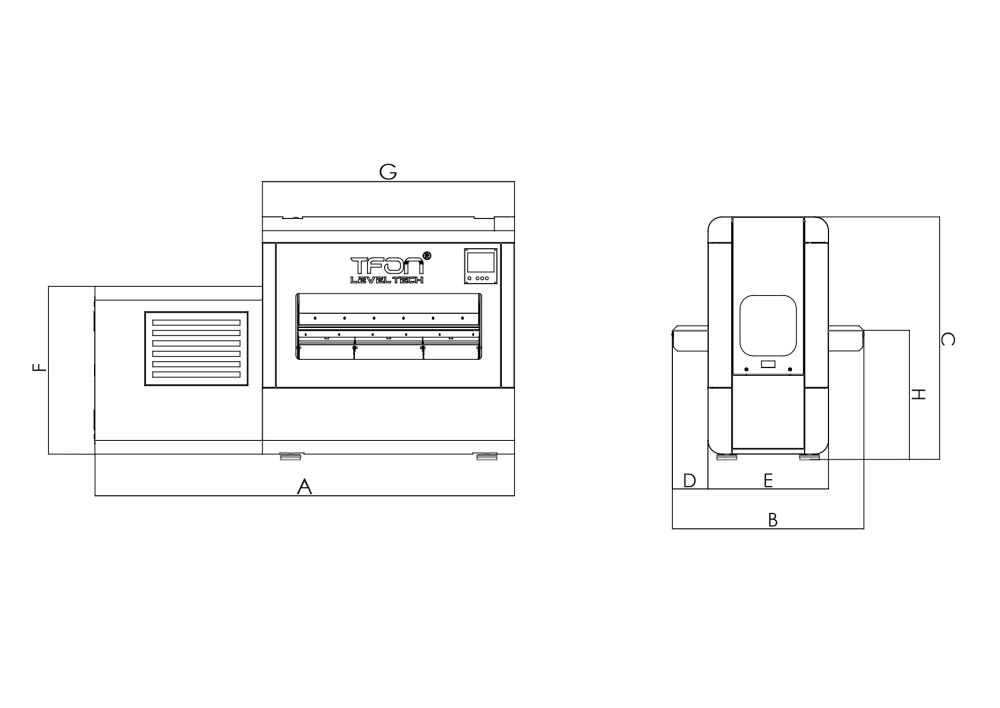

Machine Size (WxLxH)
1430x2230x1710
Total Weight (kg)
1700
Request a quote
Close
Request a quote
Fill in the details below and our team will get back to you.
Positioning Via 4 Linear Guides
PLC Control
Servo Mechanical System
Overload Protection
Leveling Gap Control
Recipe System
IV-POINT
Our machine applies force through four independently servo-motor-controlled screw jack systems to precisely manage the leveling gap. This enables highly accurate leveling and stress relief of the workpiece within a tight tolerance of just 0.1 mm.
T-VISION
Serving as the brain of the machine, our PLC-controlled touch screen provides a complete overview of the entire leveling process. It tracks every critical detail in real-time, giving operators full control and instant visibility into the machine's performance at a single glance.
PRECIPRESS
The servo-mechanical drive system delivers high precision, fast response times, and consistently repeatable performance. Its energy-efficient design and low maintenance requirements ensure reliable operation throughout production processes while contributing to superior leveling quality and stable process performance.
T-GUARD
This feature continuously monitors the torque of the motor driving the rollers and the servo motors controlling the movement of the upper cassette. If the system detects a mismatch, typically caused by an incorrect material thickness setting, it responds immediately to prevent overloading. This helps protect the machine and ensures reliable performance and optimal operating condition for many years.
GAPSNAP
The machine is equipped with a high-performance Servo-Mechanical system that actively manages the leveling gap with extreme precision. It ensures the gap remains perfectly constant as the material passes through the rollers, resisting any deflection to deliver uniform flatness across every part.
PARTTRACK
The integrated recipe system allows operators to save and load specific processing parameters for every part, ensuring consistent quality across different batches. By automating these settings, the system eliminates manual input errors and prevents potential machine damage caused by incorrect operator adjustments.

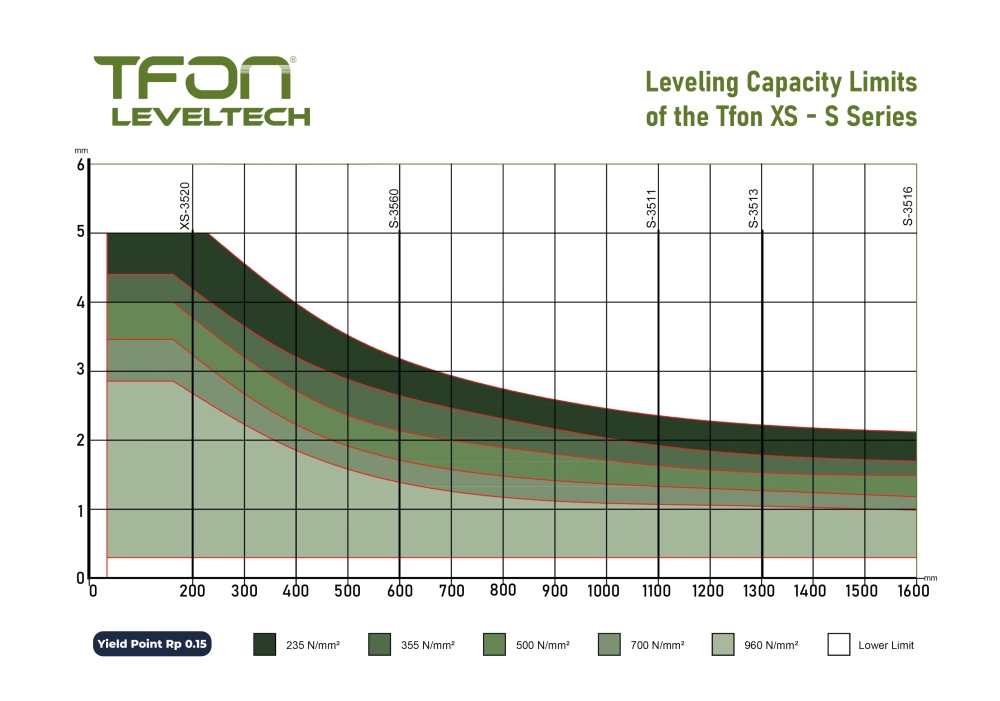

Leveling Capacity Limits
TFON XS Series
Before/After
Before/After
After
Before
After
Before
After
Before
Which job does this machine solve?
- Corrects distortion from cutting and heat input in thin sheet and small cut parts from 0.3 to 5 mm thick by mechanical roller leveling.
- Compact machine: a total weight of 1,700 kg suits shops with limited floor space.
- The leveling gap is servo-mechanically controlled.
- 35 mm minimum part length: short cut parts can be leveled as well.
- Mechanical leveling is kept separate from thermal stress-relief heat treatment; if your drawing specifies a heat treatment, it is planned as a separate process.
Frequently asked questions
Does this machine perform thermal stress relief?
No. It performs mechanical roller leveling. A good flatness result does not certify that the material is stress-free.
What thickness and part length does the TFON Leveltech® XS-3520 handle?
The TFON Leveltech® XS-3520 handles material from 0.3 to 5 mm thick and levels parts from a minimum length of 35 mm. Leveling gap control is servo-mechanical. Suitability for your part dimensions is confirmed in the engineering review.
Can parts with holes and cut-outs be leveled?
Yes, but parts with large cut-outs behave differently from a solid part of the same nominal thickness. A sample test is recommended.
How is the flatness result measured?
The measuring condition (free or supported), the measuring area, the instrument and the drawing limit are recorded together in writing.
How It Compares With Sibling Models
| Model | Working width (mm) | Thickness (mm) | Leveling gap control |
|---|---|---|---|
| XS-3520 (this page) | 200 | 0,3-5 | Servo Mechanic Control |
| TF-M 5511: 1100 mm leveling machine | 1100 | 0,5-15 | Servo Hydraulic / PC Control |
| TF-L 9060: 600 mm sheet metal leveler | 600 | 1-30 | Servo Hydraulic / PC Control |
| TF-L 9011: 1100 mm sheet metal leveler | 1100 | 1-30 | Servo Hydraulic / PC Control |
| TF-L 9013: 1300 mm sheet metal leveler | 1300 | 1-30 | Servo Hydraulic / PC Control |
| TF-L 9016: 1600 mm sheet metal leveler | 1600 | 1-30 | Servo Hydraulic / PC Control |
| TF-L 9020: 2000 mm sheet metal leveler | 2000 | 1-30 | Servo Hydraulic / PC Control |
